Client Overview:

In industries where performance is mission-critical, tight tolerances are not just a necessity—they’re a competitive advantage. An established leader in the aerospace industry, the client approached Range Precision Machining to manufacture critical engine components that required extraordinarily tight tolerances. These parts were integral to the performance of high-speed aircraft engines, facing extreme heat, vibration, and pressure conditions. The success of this project relied on the flawless integration of these components into an advanced aerospace propulsion system.

The Challenge:

The client specified a tolerance requirement of ±0.0005 inches (±12.7 microns) — a challenge that called for exacting precision. Even the smallest deviation can lead to catastrophic consequences in the aerospace industry, from system inefficiencies to critical engine failure. To meet this demand, Range Precision Machining had to implement state-of-the-art CNC machining techniques while controlling every factor affecting dimensional accuracy.

Why Tolerances Matter in Aerospace:

• Thermal Stability: Components operating under fluctuating temperatures can expand or contract. Any mismatch due to incorrect tolerances could lead to poor fitment or failure under stress.
• Minimized Wear: Tight tolerances ensure uniformity across mating parts, reducing friction, wear, and unnecessary energy loss.
• Engine Efficiency: In high-performance engines, precise tolerances are directly linked to aerodynamics and fuel efficiency. Slight imperfections can affect the airflow dynamics, leading to reduced performance or higher fuel consumption.

Solution: Leveraging Advanced CNC Machining Technology

Range Precision Machining set out to achieve these tolerances through a well-orchestrated approach, from material selection to post-machining inspection.

1. 1. Precision Material Selection: The component was machined from high-strength titanium, selected for its lightweight, heat-resistant properties. While titanium presents machining challenges due to its hardness, it was vital to ensure the final component could endure extreme aerospace conditions.

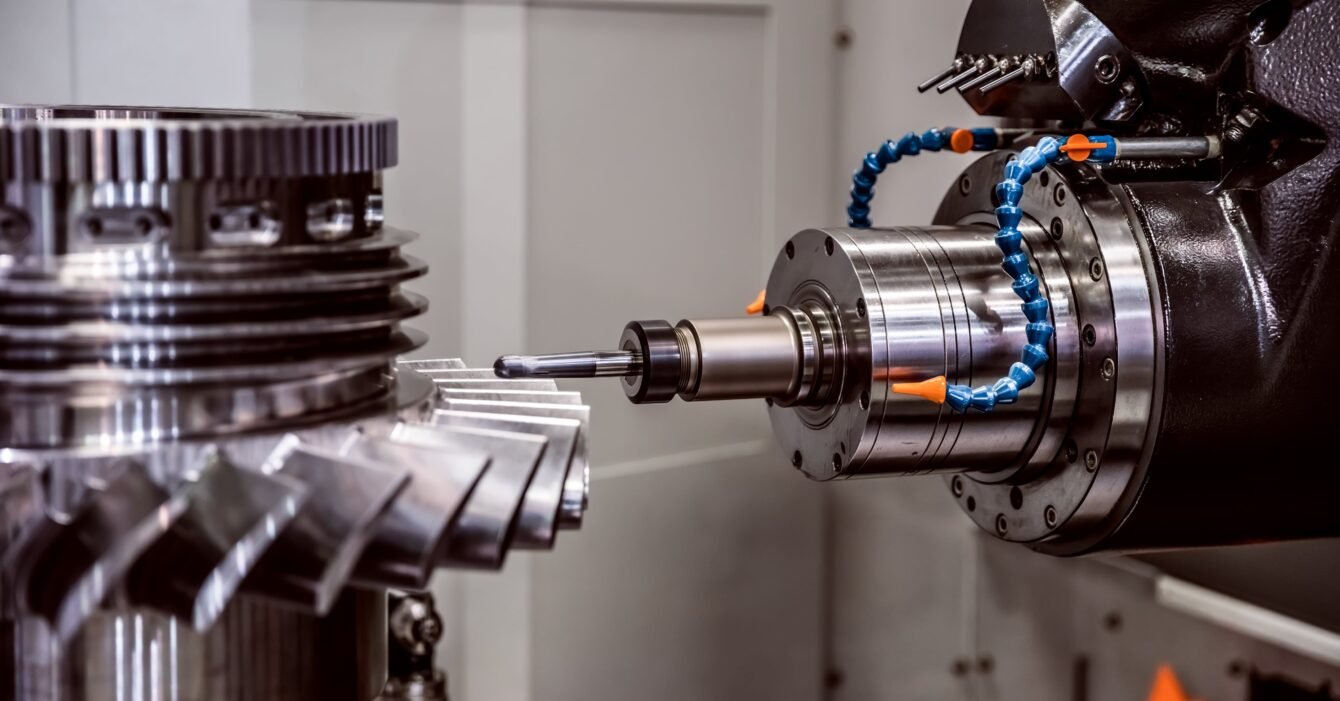

   2. Cutting-Edge CNC Technology: Range Precision employed 5-axis CNC machining for its unmatched ability to machine complex geometries while maintaining tight tolerances. Every machine was rigorously calibrated, and tool wear was continuously monitored to minimize deviations.
   3. Tooling and Thermal Compensation: To tackle the challenges of machining titanium, specialized diamond-coated tooling was used. These tools minimized wear, while thermal compensation techniques ensured that temperature changes during machining didn’t lead to tolerance drifts.
   4. In-Process Monitoring and Inspection: Precision machining alone wasn’t enough. Using laser micrometers and coordinate measuring machines (CMM), Range Precision maintained a closed-loop feedback system throughout the production process. Any deviation, even as minute as 0.0001 inches, was instantly flagged and corrected, ensuring perfect alignment with the client’s tight tolerance requirements.
   5. Post-Machining Inspection: Each component underwent a high-precision CMM inspection to confirm that the final part conformed to the exact tolerance of ±0.0005 inches. Any deviations were rectified before the parts were cleared for delivery.

The Outcome: Excellence Delivered

The result was a flawless, high-precision engine component that surpassed the client’s expectations. Performance tests demonstrated a significant reduction in friction between the assembled parts, resulting in improved engine efficiency and fuel consumption. The tight tolerances also ensured that vibration levels during operation were drastically minimized, contributing to the overall durability and safety of the engine.

The seamless integration of these CNC-machined parts helped the client achieve a 5% increase in fuel efficiency and a measurable improvement in operational stability, especially under high-stress conditions. Additionally, the high precision extended the component’s lifecycle, reducing maintenance intervals and saving on long-term costs.

Key Takeaways:

• Tight tolerances are indispensable in high-performance industries like aerospace, where the cost of error is enormous. These tolerances ensure that parts fit perfectly, reducing unnecessary friction, vibrations, and performance degradation.
• Real-time monitoring and precision tools are essential for achieving tolerances as narrow as ±0.0005 inches. Advanced CNC technology, in conjunction with robust quality control measures, ensures that each part meets or exceeds client specifications.
• Material selection and post-machining treatments also play a pivotal role. Choosing the right material ensures that the part can withstand high temperatures, while rigorous inspection methods ensure dimensional stability and long-term reliability.

Conclusion:

Range Precision Machining’s ability to deliver high-precision parts that meet stringent requirements has positioned the company as a trusted partner for aerospace and other high-performance industries. Through the use of advanced CNC machining and meticulous quality control, Range Precision continues to set the standard for excellence in precision manufacturing.

The success of this project is a testament to the importance of expertise, innovation, and precision in delivering parts that help clients achieve peak performance and operational efficiency.
